Inflatable LED Light Mats: From Niche Experiment to New Baseline

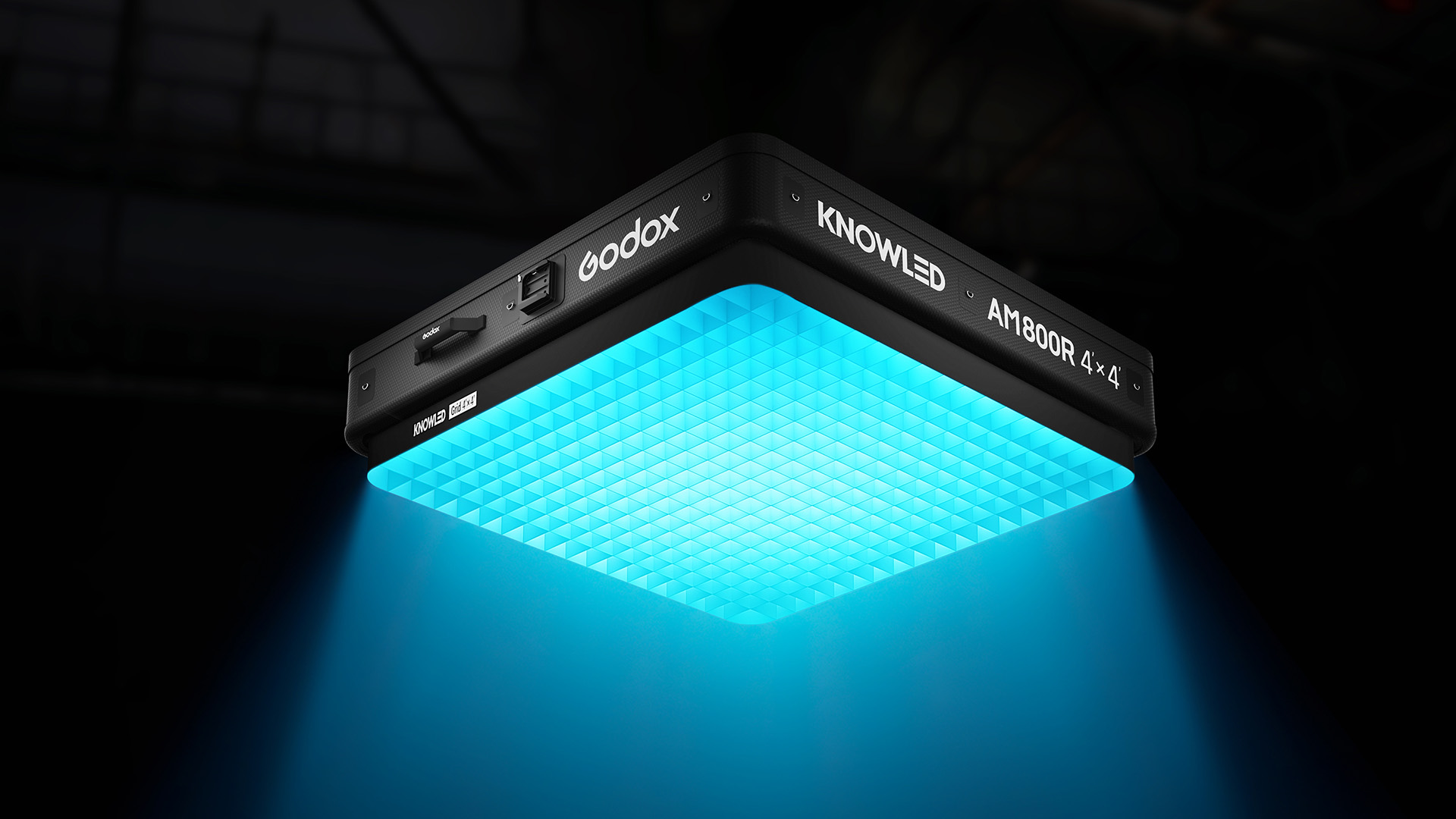

Inflatable LED light mats are high-output, soft, full-color LED panels built into pressurized airframes that replace heavy metal structures, allowing crews to deploy large, controllable light sources in under a minute while cutting setup time, grip hardware, and transport bulk for studio and location lighting setups. That is the real disruption behind the Godox KNOWLED AM800R, an 800W RGBWW 4×4 full-color LED mat that inflates to 8 PSI in about one minute and is now available for pre-order at USD 3,990 (approx. ₱224,000). Instead of framing a flexible mat in aluminum, this inflatable LED light uses air and a carbon fiber backplate to create a production-ready source that crews can mount on stands, booms, or suspend without a truss system. The result is not a toy; it is a serious soft light that says speed matters as much as output in professional video lighting.
Speed and Mobility: One-Minute Setup Changes Location Lighting Math

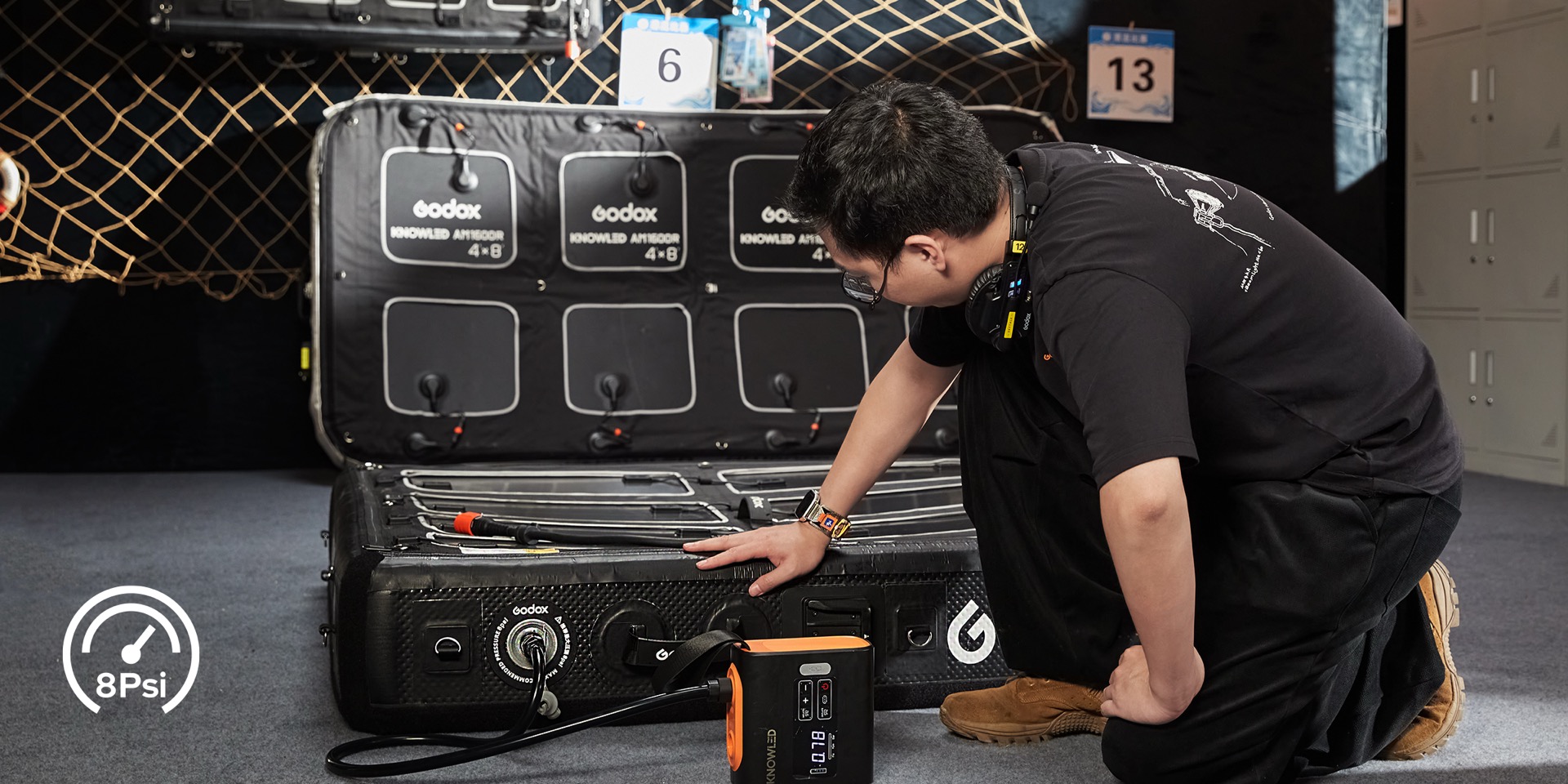

The most important thing about the AM800R is not the wattage; it is the clock. A 4×4 soft source that inflates in about one minute turns what used to be a small rigging project into a one-person task. On many jobs, the limiting factor in location lighting setup is not imagination, but time and crew size. With air instead of aluminum, a gaffer can throw up a full-color LED mat, dial in color, and be rolling before a traditional frame is even laced. Godox openly says the airframe is intended to simplify transportation and speed up setup while still holding up to production abuse. That trade is significant: fewer cases, lighter stands, and less need for truss support means smaller crews can hit more locations in a day without compromising the quality of professional video lighting.
Why Full-Color, Weatherproof Mats Matter for Real-World Locations

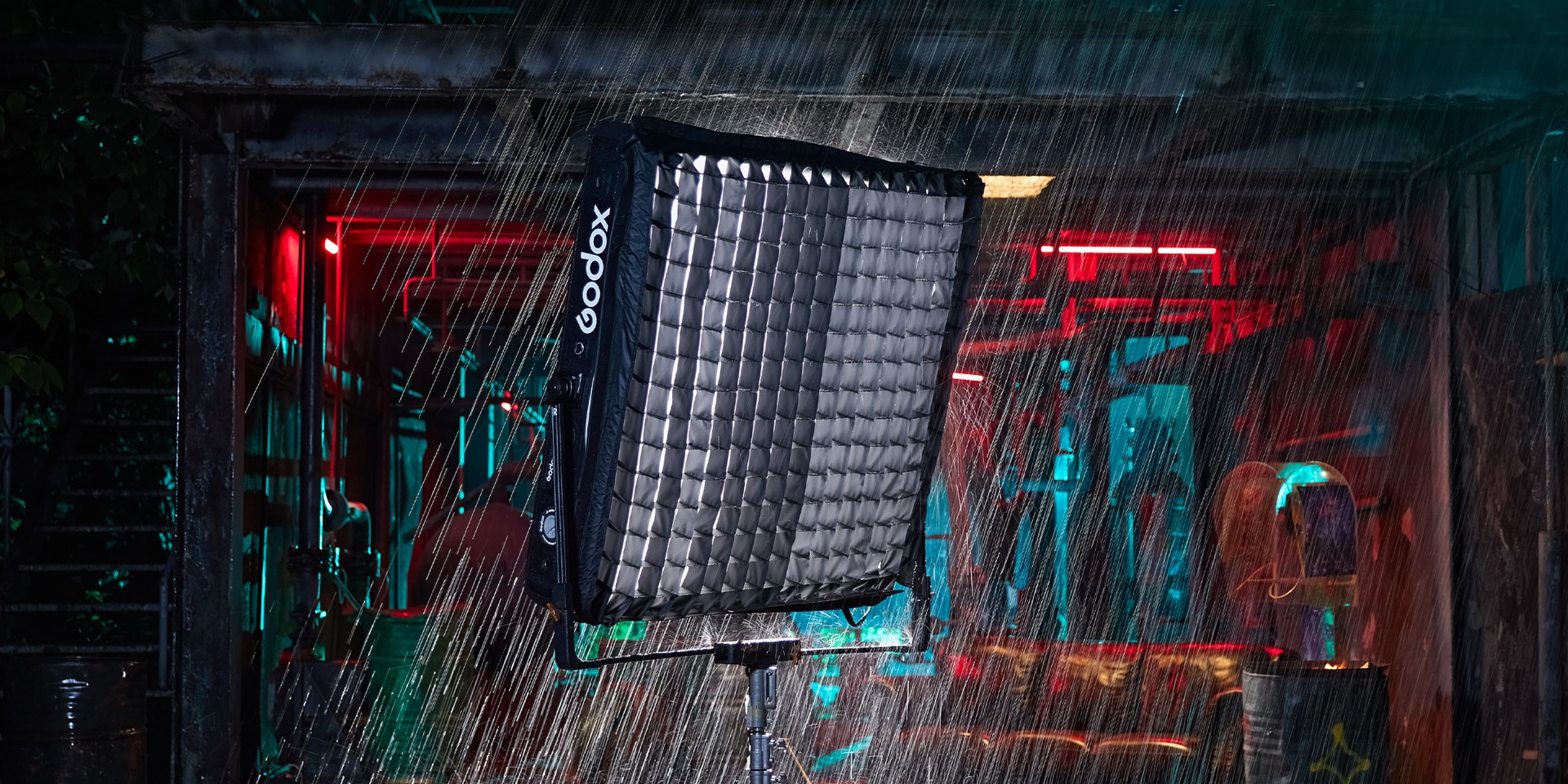

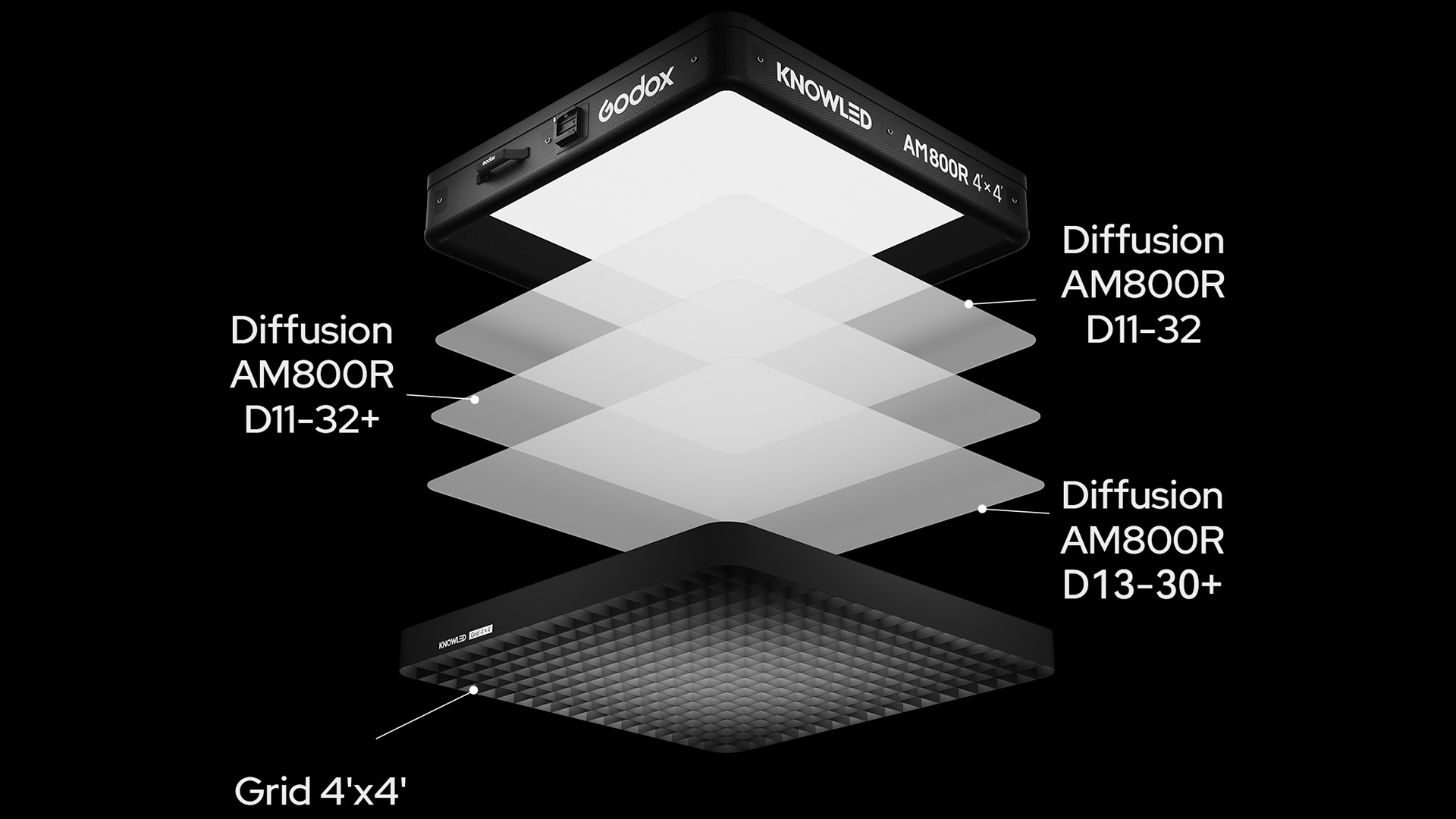

On paper, the AM800R looks like another bright toy; on location, its feature set targets real pain points. The 800W RGBWW engine with a 4×4-foot (1.2×1.2m) surface provides a high-output soft source that can cover interviews, commercials, and mid-sized narrative scenes without resorting to multiple smaller fixtures. A color temperature range from 1,800K to 10,000K with ±100 green-magenta adjustment means it can match sodium, blue hour, or ugly office fluorescents without a bag of gels. Microstructure diffusion fabrics are designed to keep output even across the mat while offering different softness levels. Critically, the IP65 rating for both light body and controller means this full-color LED mat is built for unpredictable exteriors, where rain, dust, and wind are a given rather than an exception.
Integration, Control, and the Broader Shift in Professional Video Lighting
The AM800R is not an isolated gadget; it is a missing puzzle piece in an expanding ecosystem. Last year’s larger inflatable KNOWLED AM1600R in 4×8 and 8×8 formats signaled the direction, and the 4×4 size now lands in what many gaffers consider the workhorse soft light category. It can be flown alone, combined into 4×8 or 8×8 walls via edge D-rings, or integrated into console-driven rigs via DMX/RDM, CRMX, and Ethernet protocols, while Bluetooth and app control cover smaller sets. According to one report, “Control options cover the expected professional protocols: wired DMX/RDM, wireless CRMX, and Ethernet with Art-Net and sACN support for console-driven multi-light environments”. This is the point: inflatable LED light technology is no longer a novelty; it plugs straight into existing workflows, lowering barriers to big, soft, controllable light on any location.
Conclusion: Air-Filled Frames, Serious Intent

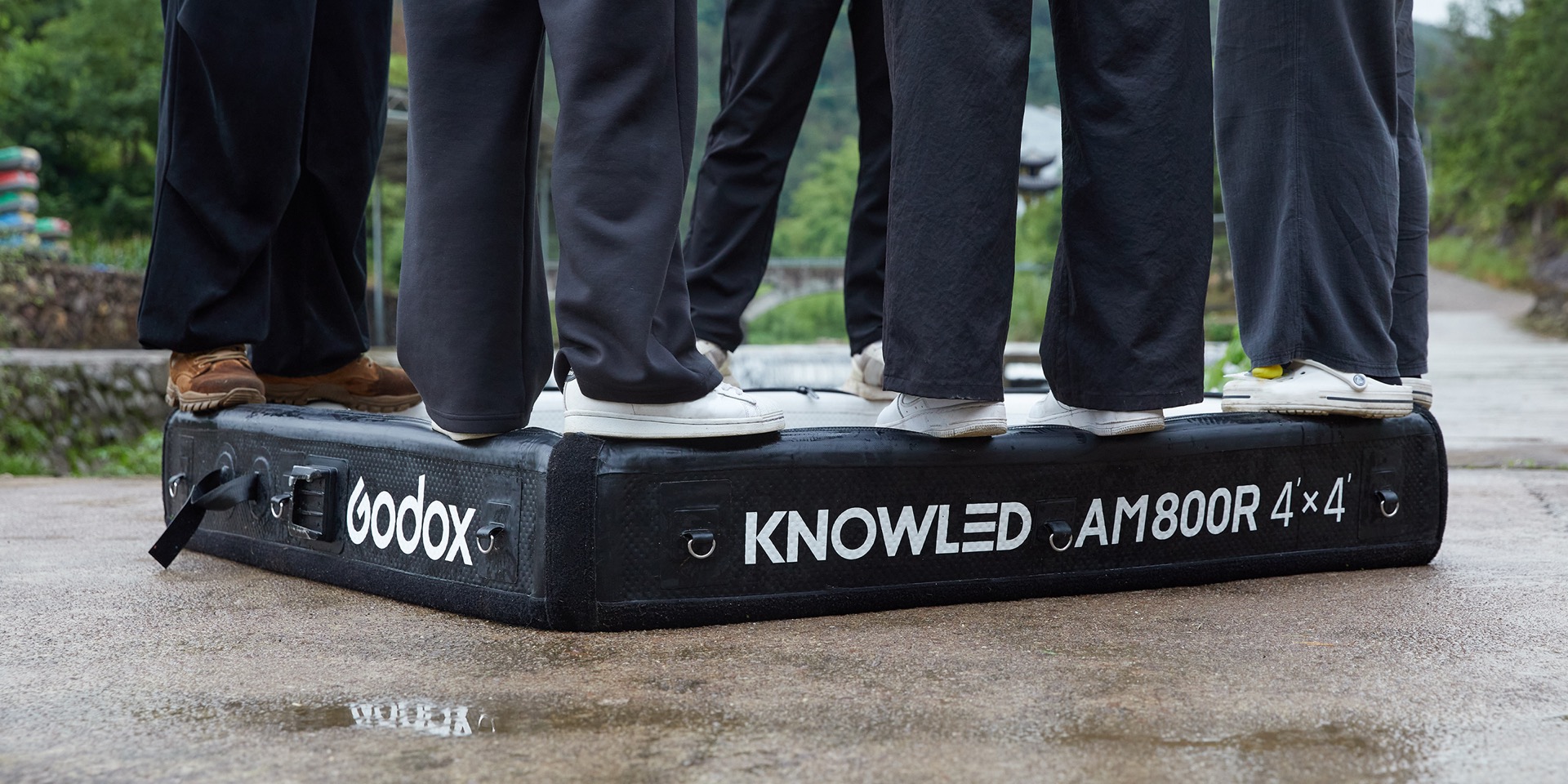

The KNOWLED AM800R proves that inflatable does not have to mean fragile or amateur. A 4×4, 800W full-color LED mat that sets up in about a minute, survives the weather, and talks fluently to professional control systems is more than a spec sheet win. It is a statement that the future of location lighting setup is fast, modular, and far less dependent on heavy metal frames and truss. At USD 3,990 (approx. ₱224,000), this is still a professional tool, not an entry-level light, but it pushes the industry toward a world where matching big-soft quality with nimble deployment is normal—not a luxury. Expect more crews to ask a new question when they plan their rigs: if air can do the job, why drag the aluminum?
