Top Pick: Why the Z890 Tomahawk WiFi II Wins for Most Builders

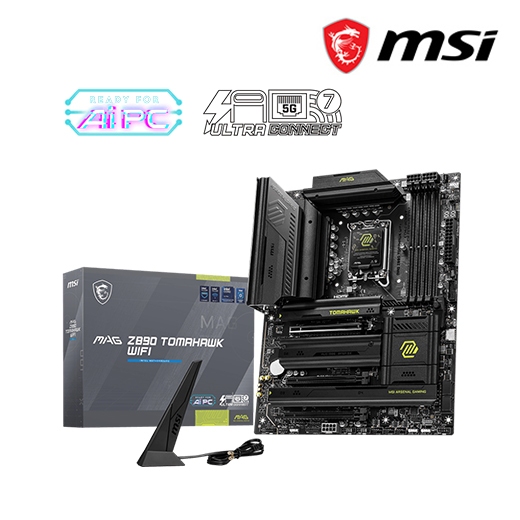

The MSI MAG Z890 Tomahawk WiFi II is a streamlined Intel LGA 1851 ATX motherboard that trades some connectivity for a lower price while retaining strong power delivery, modern storage support, and DIY-friendly features, making it a compelling budget motherboard value for mainstream gaming and productivity builds. This is the board most people should buy. At USD 229.99 (approx. ₱13,000), it delivers 19-phase power with 16x 90A SPS MOSFETs for Vcore, four M.2 sockets including one PCIe 5.0 x4 slot, plus four SATA III ports with RAID support. In everyday use—gaming, rendering, encoding, and office work—performance sits comfortably in the middle of tested boards, with no obvious bottlenecks. You still get Wi-Fi 7, 5 GbE networking, plenty of USB (including Thunderbolt 4), and MSI’s EZ DIY touches. For most affordable PC building plans around Intel’s new platform, this is the sweet spot.
What MSI Cut from the Original Z890 Tomahawk—and Why It Matters
The Z890 Tomahawk WiFi II removes a few headline features from the original board to shave dollars off the price without touching its core capabilities. According to one review, “It retains the same aesthetic, core power delivery, and DIY-friendly features, but has two connectivity downgrades: a single TB4 port (down from two) and reduced Wi-Fi 7 speeds.” On the rear I/O, that translates to one less Thunderbolt 4 Type‑C port running at 40 Gbps, though you still keep another USB 3.2 Gen 2 Type‑C and seven Type‑A ports ranging from 5 to 10 Gbps. Wi-Fi 7 remains supported up to 2.9 Gbps with 160 MHz channels across 6 GHz and 5.8 GHz bands. For typical builders—single‑GPU gaming, a couple of fast NVMe drives, and standard peripherals—losing a second TB4 port and some wireless headroom is minor. If you rely on multiple Thunderbolt displays, high-speed docks, or ultra-fast Wi-Fi for large file transfers, the cuts matter more.
Feature Set: Where the Tomahawk WiFi II Still Delivers

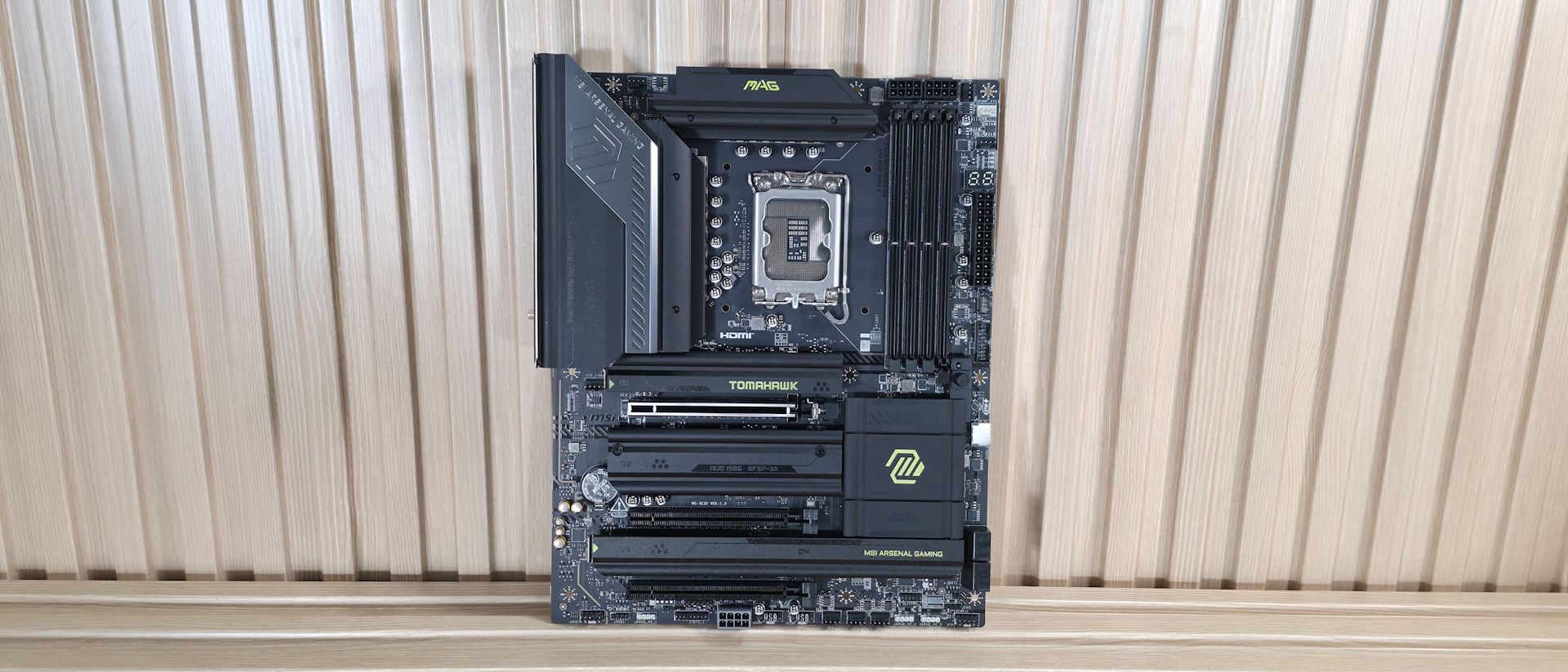

Despite the feature trims, the Z890 Tomahawk WiFi II keeps almost everything that defines a capable modern Intel platform board. You get an ATX layout with an LGA 1851 socket and Z890 chipset, plus two DDR5 slots supporting DDR5‑9200+ MT/s overclocked and up to 256GB total capacity. PCIe expansion starts with a full‑length PCIe 5.0 x16 slot for current and next‑gen GPUs, backed by two PCIe 4.0 x4 slots for extra cards. Storage is well covered by four M.2 sockets—one PCIe 5.0 x4 and three PCIe 4.0 x4, one of which also supports SATA—alongside four SATA3 6 Gbps ports with RAID 0/1/5/10. Networking includes 5 GbE plus Wi-Fi 7 and Bluetooth 5.4, while rear audio uses a Realtek ALC1200P codec. Eight 4‑pin fan headers (including a high‑power pump header), EZ Debug LEDs, and MSI’s EZ M.2 clips round out the DIY‑friendly design tailored to affordable PC building.
| Spec | MSI MAG Z890 Tomahawk WiFi II | MSI B550M PRO-VDH |
|---|---|---|
| Socket / Platform | LGA 1851, Intel Z890 chipset, ATX form factor | AM4, B550 chipset, MicroATX form factor |
| Memory Support | DDR5, 2 DIMM slots, up to 256GB, DDR5-9200+ MT/s (OC) | DDR4, up to 128GB RAM |
| Primary PCIe GPU Slot | 1× PCIe 5.0 x16 | PCIe 4.0 x16 (via B550 platform) |
| M.2 Storage | 4× M.2 (1× PCIe 5.0 x4, 3× PCIe 4.0 x4 including 1× PCIe/SATA) | Up to 16TB of PCIe 4.0 M.2 storage supported |
| SATA Ports | 4× SATA3 6 Gbps, RAID 0/1/5/10 | 4× SATA III ports |
| Networking | 5 GbE, Wi-Fi 7 up to 2.9 Gbps, BT 5.4 | Ethernet, Wi‑Fi, Bluetooth included |
| Typical Price | USD 229.99 (approx. ₱13,000) | USD 80 (approx. ₱4,500) on sale from USD 95 (approx. ₱5,300) |
Alternative Pick: MSI B550M PRO‑VDH for Super‑Tight Budgets

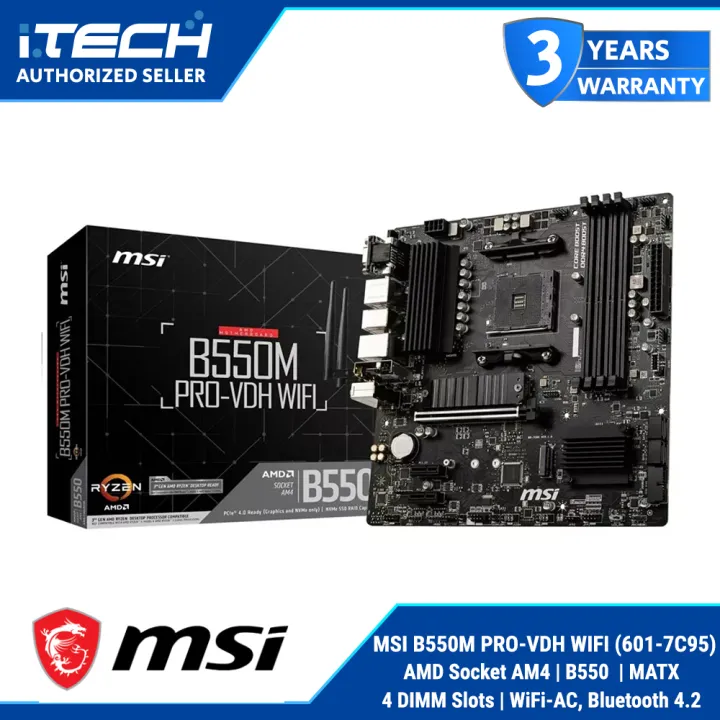

If your budget is extremely limited and you are happy to build on AMD’s AM4 platform, the MSI B550M PRO‑VDH is a strong alternative. It is a MicroATX B550 motherboard with support for AMD AM4 CPUs, DDR4 memory, and PCIe 4.0 storage, handling up to 128GB of RAM and 16TB of M.2 SSD storage. Times are tough for affordable PC building, and this board’s USD 80 (approx. ₱4,500) price tag on sale from USD 95 (approx. ₱5,300) makes it easy to pick up. Pairing it with a Ryzen 7 5800X3D can create a powerful 1440p gaming machine, and cheaper AM4 chips are widely available. You get USB‑A ports, Ethernet, Wi‑Fi, Bluetooth, 3.5mm jacks, HDMI, and DisplayPort, though connectivity is more basic than higher‑end boards. For builders who plan to hunt deals or consider used parts over time, this board is a practical heart for a long‑term budget rig.
Buy if / Skip if
- Buy the MSI MAG Z890 Tomahawk WiFi II if you want the best budget motherboard value on Intel’s LGA 1851 platform with strong power delivery and PCIe 5.0 support.
- Skip the MSI MAG Z890 Tomahawk WiFi II if you rely on dual Thunderbolt 4 ports or need the fastest possible Wi‑Fi 7 performance for pro‑level external workflows.
- Buy the MSI MAG Z890 Tomahawk WiFi II if you plan a mainstream gaming or productivity build that needs up to four M.2 drives, four SATA drives, and plenty of USB.
- Skip the MSI MAG Z890 Tomahawk WiFi II if you prefer an AM4 system with cheaper DDR4 and used CPU options instead of investing in a new Intel platform.
- Buy the MSI B550M PRO‑VDH if you are focused on affordable PC building and want an USD 80 (approx. ₱4,500) AM4 board that still offers PCIe 4.0 and solid gaming performance potential.
- Skip the MSI B550M PRO‑VDH if you need cutting‑edge connectivity, advanced rear I/O, or plan heavy future upgrades beyond what a budget AM4 MicroATX board offers.
